What types of sensors are used in industrial cooling tower monitoring?

Hey there! As a supplier of industrial cooling towers, I've seen firsthand how crucial it is to have proper monitoring in place. Industrial cooling towers play a vital role in various industries, from power generation to manufacturing, by removing excess heat from industrial processes. To ensure their efficient and reliable operation, a variety of sensors are used. In this blog post, I'll walk you through the different types of sensors commonly employed in industrial cooling tower monitoring.

Temperature Sensors

Temperature sensors are perhaps the most fundamental sensors used in cooling tower monitoring. They help in keeping track of the temperature of both the incoming and outgoing water, as well as the ambient air temperature.

One of the most widely used temperature sensors is the thermocouple. Thermocouples work based on the Seebeck effect, where two different metals joined at two junctions produce a voltage proportional to the temperature difference between the junctions. They're rugged, can withstand high temperatures, and are relatively inexpensive. This makes them a great choice for measuring the hot water temperature entering the cooling tower.

Another popular option is the resistance temperature detector (RTD). RTDs work on the principle that the electrical resistance of a metal changes with temperature. They offer high accuracy and stability, making them ideal for applications where precise temperature measurements are required, such as monitoring the cold water temperature leaving the cooling tower.

By continuously monitoring the water and air temperatures, operators can ensure that the cooling tower is operating at the optimal temperature range. If the water temperature is too high, it could indicate a problem with the cooling process, such as a clogged heat exchanger or insufficient water flow. On the other hand, if the water temperature is too low, it could mean that the cooling tower is over - performing, which can lead to unnecessary energy consumption.

Flow Sensors

Flow sensors are used to measure the rate of water flow through the cooling tower. There are several types of flow sensors available, each with its own advantages and disadvantages.

One common type is the electromagnetic flow meter. It works based on Faraday's law of electromagnetic induction. When a conductive fluid (like water) flows through a magnetic field, a voltage is induced, which is proportional to the flow rate. Electromagnetic flow meters are non - intrusive, have no moving parts, and can measure a wide range of flow rates accurately. They're suitable for measuring the water flow in the main pipes of the cooling tower system.

Another option is the ultrasonic flow meter. Ultrasonic flow meters use ultrasonic waves to measure the flow rate of the fluid. They can be either transit - time or Doppler type. Transit - time ultrasonic flow meters measure the difference in the time it takes for ultrasonic waves to travel upstream and downstream in the fluid. Doppler ultrasonic flow meters, on the other hand, measure the frequency shift of the ultrasonic waves reflected from particles or bubbles in the fluid. Ultrasonic flow meters are easy to install and can be used on a variety of pipe materials.

Monitoring the water flow rate is essential because it directly affects the cooling efficiency of the tower. If the flow rate is too low, the water may not be able to absorb enough heat from the industrial process, leading to overheating. If the flow rate is too high, it can cause excessive water loss through evaporation and increase energy consumption.

Level Sensors

Level sensors are used to monitor the water level in the cooling tower basin. Maintaining the proper water level is crucial for the efficient operation of the cooling tower.

One type of level sensor is the float switch. Float switches consist of a float that rises and falls with the water level. When the water level reaches a certain point, the float activates a switch, which can be used to control pumps or alarms. Float switches are simple, reliable, and inexpensive, making them a popular choice for basic level monitoring.

Another option is the ultrasonic level sensor. Ultrasonic level sensors work by emitting ultrasonic waves towards the water surface and measuring the time it takes for the waves to bounce back. Based on this time, the sensor can calculate the distance to the water surface and determine the water level. Ultrasonic level sensors are non - contact, which means they don't come into direct contact with the water, reducing the risk of corrosion and fouling.

If the water level in the cooling tower basin is too low, it can cause the pumps to run dry, leading to pump damage. If the water level is too high, it can cause water to overflow, resulting in water waste and potential damage to the surrounding area.

Pressure Sensors

Pressure sensors are used to monitor the pressure in the cooling tower system, including the water pressure in the pipes and the air pressure in the tower.

A common type of pressure sensor is the strain - gauge pressure sensor. Strain - gauge pressure sensors work by measuring the deformation of a strain gauge when pressure is applied. The deformation causes a change in the electrical resistance of the strain gauge, which can be measured and converted into a pressure reading. Strain - gauge pressure sensors are accurate, reliable, and can measure a wide range of pressures.

Monitoring the water pressure is important because it can indicate problems such as blockages in the pipes or pump malfunctions. If the water pressure is too high, it can cause leaks or damage to the pipes and fittings. If the water pressure is too low, it can affect the water distribution in the cooling tower and reduce its cooling efficiency.

Water Quality Sensors

Water quality sensors are used to monitor the chemical and physical properties of the water in the cooling tower. Maintaining good water quality is essential for preventing corrosion, scaling, and biological growth in the cooling tower system.

One important water quality parameter is pH. pH sensors are used to measure the acidity or alkalinity of the water. A proper pH range (usually between 6.5 and 8.5) helps to prevent corrosion and scaling. If the pH is too low, the water is acidic, which can corrode the metal components of the cooling tower. If the pH is too high, the water is alkaline, which can cause scaling.

Another important parameter is conductivity. Conductivity sensors measure the ability of the water to conduct electricity, which is related to the concentration of dissolved salts in the water. High conductivity can indicate a high concentration of dissolved solids, which can lead to scaling and corrosion.

In addition, sensors can also be used to monitor the concentration of other substances in the water, such as chlorine (for disinfection), calcium, and magnesium (for scaling potential).

Air Quality Sensors

Air quality sensors are used to monitor the quality of the air in and around the cooling tower. Cooling towers can generate aerosols and pollutants, which can have an impact on the environment and human health.

One type of air quality sensor is the particulate matter (PM) sensor. PM sensors measure the concentration of particulate matter in the air, such as dust, smoke, and pollen. High levels of particulate matter can cause respiratory problems and reduce visibility.

Another important parameter is the concentration of volatile organic compounds (VOCs). VOC sensors are used to detect the presence of VOCs in the air, which can be emitted from the cooling tower due to the use of chemicals or the degradation of organic materials. VOCs can have a negative impact on air quality and human health.

By monitoring the air quality, operators can take measures to reduce emissions and ensure that the cooling tower complies with environmental regulations.

Why Choose Our Industrial Cooling Towers?

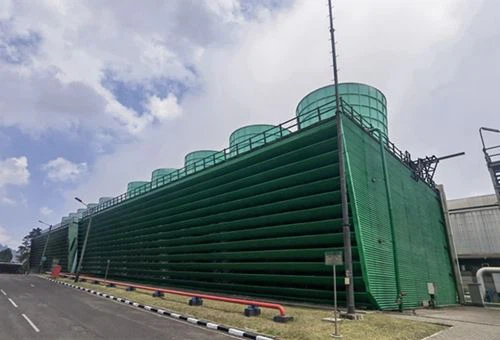

We offer a wide range of industrial cooling towers, including Concrete Crossflow Cooling Towers, Cross Flow Natural Draft Cooling Tower, and Industrial Counterflow Cooling Tower. All our cooling towers are equipped with state - of - the - art sensors to ensure reliable and efficient operation.

If you're in the market for an industrial cooling tower or need to upgrade your existing monitoring system, we'd love to have a chat with you. Our team of experts can help you choose the right cooling tower and sensors for your specific needs. Don't hesitate to reach out and start a conversation about your procurement requirements. We're here to make sure you get the best solution for your industrial cooling needs.
