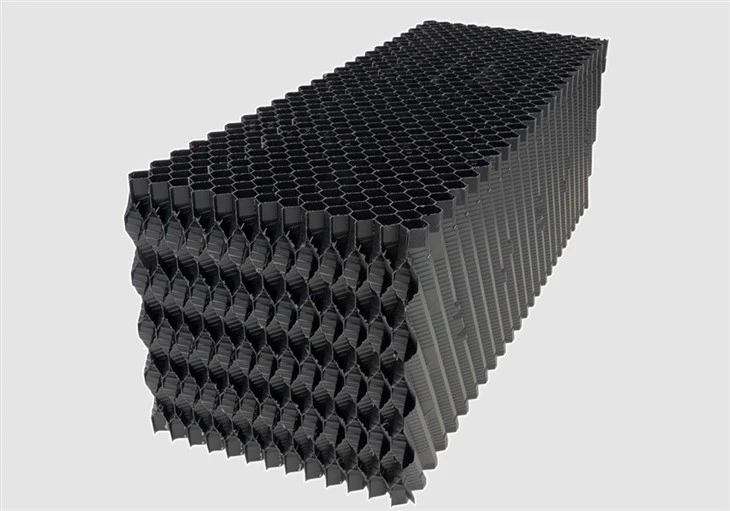

Cross-Fluted Film Fill
Cross-Fluted Film Fill is specifically developed for factory-assembled counterflow cooling towers used in HVAC and light industrial systems.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Cross-Fluted Film Fill
Cross-Fluted Film Fill is specifically developed for factory-assembled counterflow cooling towers used in HVAC and light industrial systems. It enhances water distribution by splitting the descending water stream, which promotes better thermal mixing and improves cooling performance. Designed for systems with low total suspended solids, CF1200 can also serve as a distribution pad in 3.9" (100 mm) and 5.9" (150 mm) thicknesses. The structured fill geometry splits the water stream ten times across an 11.8-inch (300 mm) vertical path, providing a strong balance of high thermal efficiency and low pressure drop.
Design Features
| Feature | Description |
| High Thermal Efficiency | Cross-fluted film design delivers superior heat transfer and enhances tower cooling capacity. |
| Enhanced Water Distribution | Engineered microstructure improves uniform water flow and thermal contact surface. |
| Bonded Contact Points | Structural bonding increases media integrity and long-term performance. |
| Beveled Edge Design | Beveled flute tips facilitate better drainage between fill packs, minimizing water retention. |
Description
100% Raw Material
More than 7,000 tons PVC and PP resin in inventory, which can meet the production needs of customer orders in anytime and anywhere!

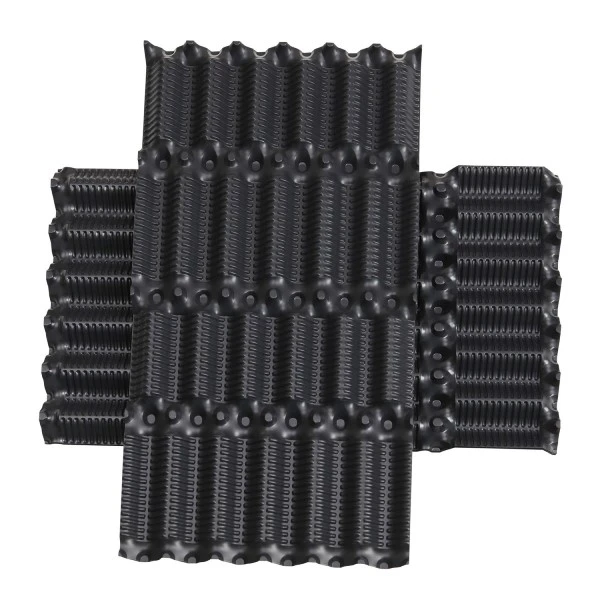

Special Wave design
Can supplied with PP & PVC material, specially designed for uncontaminated water sources.
Honeycomb
Good scale control
Low cycles of concentration
Minimal airborne dust
Easy Assembly
Use PVC glue can easily assemble into fill blocks, reduce the shipping cost.
Key Benefits of CF1200 Fill
Benefit |
Description |
| CTI Standard 136 Compliant | Available in materials that meet Cooling Technology Institute Standard 136. |
| AccuShield Technology | Optional protective coating enhances durability and chemical resistance. |
| Mechanical Assembly | Assembled using advanced techniques that deliver 50% stronger connections compared to glued fills. |
Technical Data
| Model |
LTN-9619.500mm
|
LTN-9619.610mm
|
| products |
 |
 |
| Length | As request | As request |
| Width | 500mm | 610mm |
| Thickness | 0.25-0.60mm | 0.25-0.60mm |
| Sheet pitch | 20mm | 20mm |
| Available material | pP & PVC | PP & PVC |
| Free Volume | 〉97% | 〉97% |
| Effecitve surgace area | 140 m2/m3 | 140m2/m3 |
